Get, set, and modify the active theme

The current/active theme (see theme()) is automatically applied to every plot you draw. Use get_theme() to get the current theme, and set_theme() to completely override it. update_theme() and replace_theme() are shorthands for changing individual elements.

Usage

get_theme()

theme_get()

set_theme(new)

theme_set(new)

update_theme(...)

theme_update(...)

replace_theme(...)

theme_replace(...)

e1 %+replace% e2

Arguments

new: new theme (a list of theme elements)
...: named list of theme settings
e1, e2: Theme and element to combine

Value

set_theme(), update_theme(), and replace_theme() invisibly return the previous theme so you can easily save it, then later restore it.

Adding on to a theme

+ and %+replace% can be used to modify elements in themes.

+ updates the elements of e1 that differ from elements specified (not NULL) in e2. Thus this operator can be used to incrementally add or modify attributes of a ggplot theme.

In contrast, %+replace% replaces the entire element; any element of a theme not specified in e2 will not be present in the resulting theme (i.e. NULL). Thus this operator can be used to overwrite an entire theme.

update_theme() uses the + operator, so that any unspecified values in the theme element will default to the values they are set in the theme. replace_theme() uses %+replace% to completely replace the element, so any unspecified values will overwrite the current value in the theme with NULL.

In summary, the main differences between set_theme(), update_theme(), and replace_theme() are:

set_theme() completely overrides the current theme.
update_theme() modifies a particular element of the current theme using the + operator.
replace_theme() modifies a particular element of the current theme using the %+replace% operator.

Examples

p <- ggplot(mtcars, aes(mpg, wt)) +
  geom_point()
p


# Use set_theme() to completely override the current theme.
# update_theme() and replace_theme() are similar except they
# apply directly to the current/active theme.
# update_theme() modifies a particular element of the current theme.
# Here we have the old theme so we can later restore it.
# Note that the theme is applied when the plot is drawn, not
# when it is created.

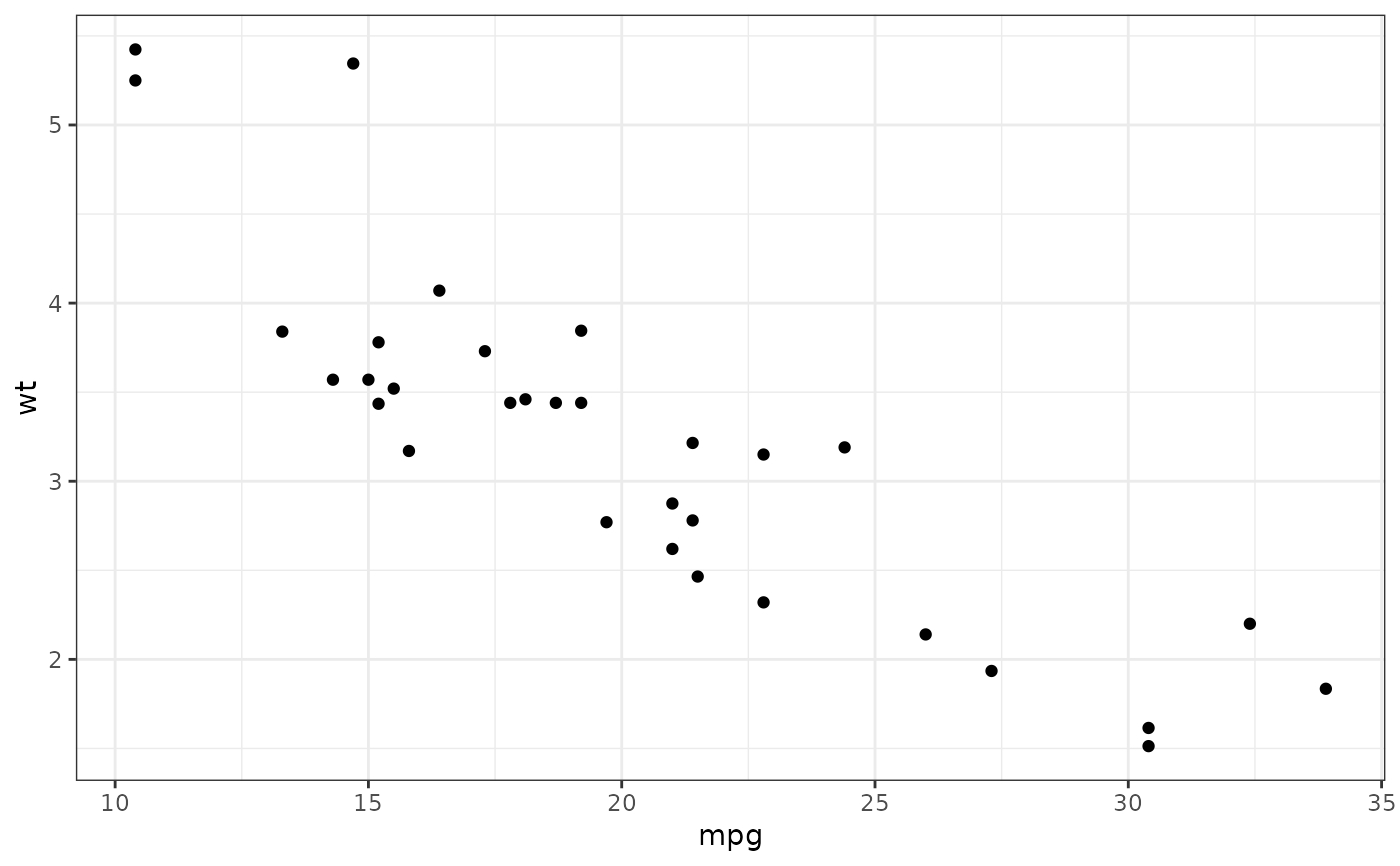

old <- set_theme(theme_bw())
p


set_theme(old)

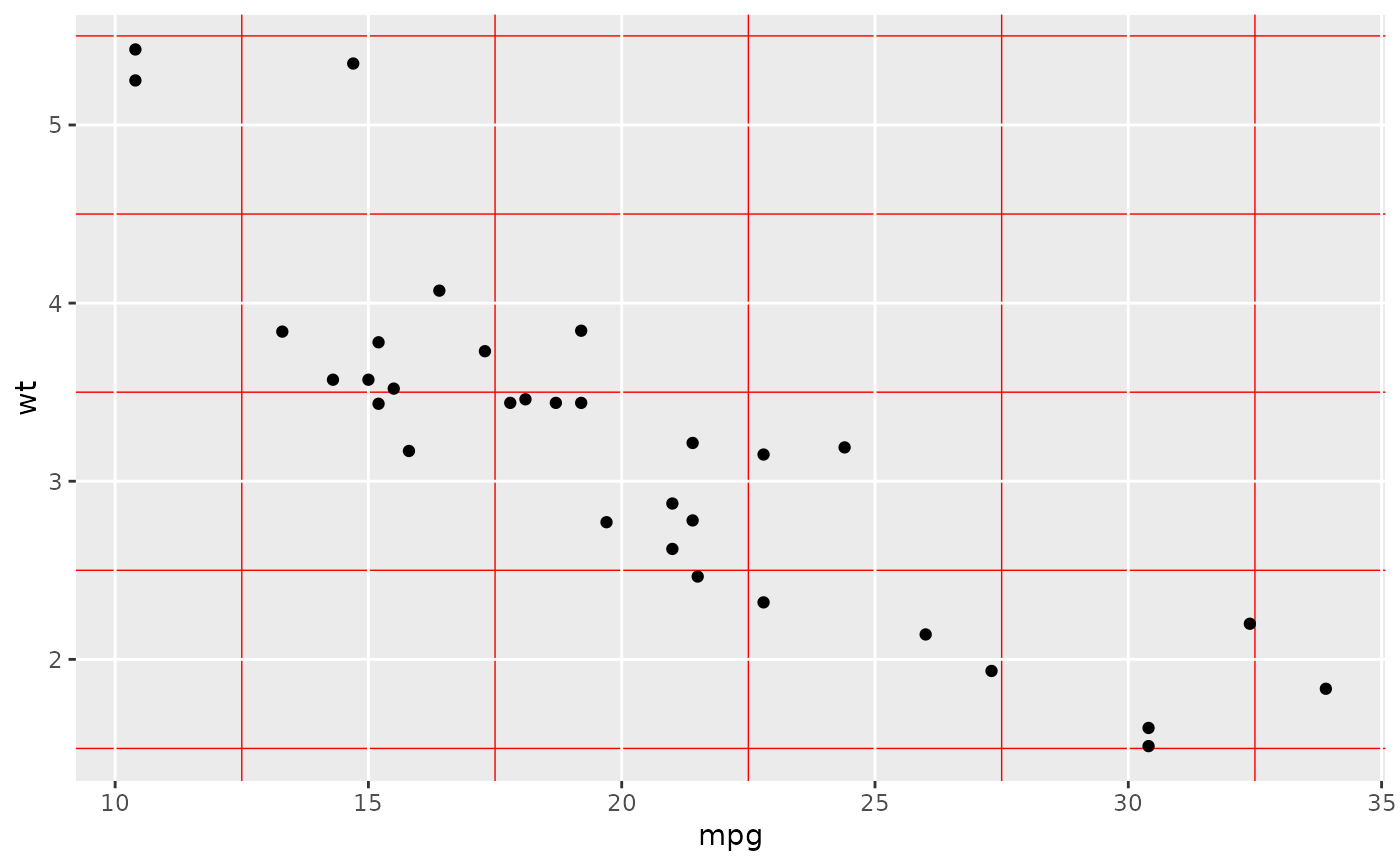

update_theme(panel.grid.minor = element_line(colour = "red"))
p


set_theme(old)

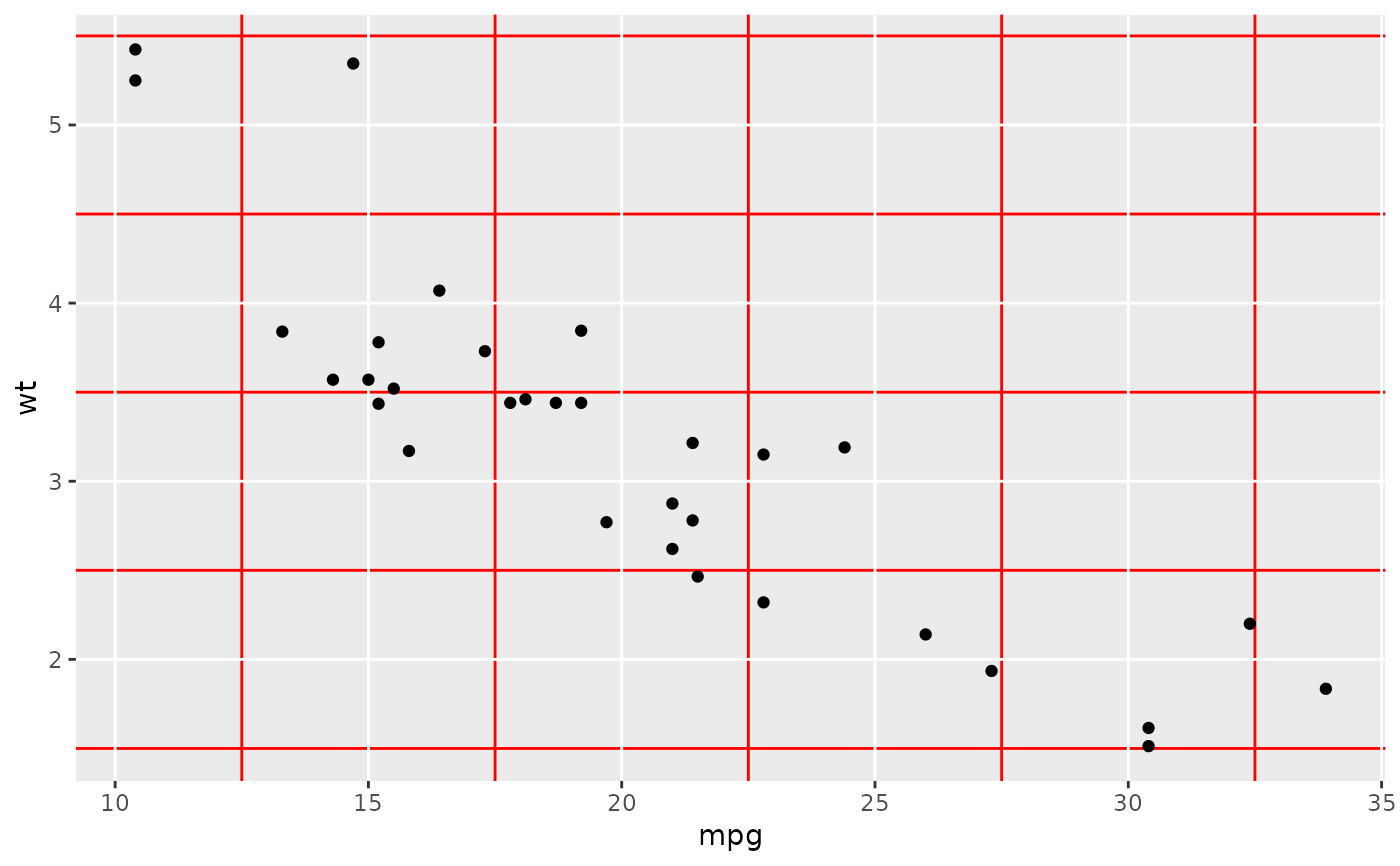

replace_theme(panel.grid.minor = element_line(colour = "red"))
p


set_theme(old)
p



# Modifying theme objects -----------------------------------------
# You can use + and %+replace% to modify a theme object.
# They differ in how they deal with missing arguments in
# the theme elements.

add_el <- theme_grey() +
  theme(text = element_text(family = "Times"))
add_el$text
#> <ggplot2::element_text>
#>  @ family       : chr "Times"
#>  @ face         : chr "plain"
#>  @ italic       : chr NA
#>  @ fontweight   : num NA
#>  @ fontwidth    : num NA
#>  @ colour       : chr "black"
#>  @ size         : num 11
#>  @ hjust        : num 0.5
#>  @ vjust        : num 0.5
#>  @ angle        : num 0
#>  @ lineheight   : num 0.9
#>  @ margin       : <ggplot2::margin> num [1:4] 0 0 0 0
#>  @ debug        : logi FALSE
#>  @ inherit.blank: logi FALSE

rep_el <- theme_grey() %+replace%
  theme(text = element_text(family = "Times"))
rep_el$text
#> <ggplot2::element_text>
#>  @ family       : chr "Times"
#>  @ face         : NULL
#>  @ italic       : chr NA
#>  @ fontweight   : num NA
#>  @ fontwidth    : num NA
#>  @ colour       : NULL
#>  @ size         : NULL
#>  @ hjust        : NULL
#>  @ vjust        : NULL
#>  @ angle        : NULL
#>  @ lineheight   : NULL
#>  @ margin       : NULL
#>  @ debug        : NULL
#>  @ inherit.blank: logi FALSE
